Kwik-Shot™

Kwik-Shot™ Timber 50mm

Product Code : A4KS-T17HXPS1250C4
Specification : #12-11 X 50mm
Corrosion Resistance: AS3566.2 Class 4 Mechanical Zinc-Tin Plating
SST 2000hrs + Kesternich 15 Cycles

Product Enquiry

Detailed Introduction

ATLAS FASTENERS - Polycarbonate Roof Fasteners - Kwik-Shot™ TIMBER

Polycarbonate Roof Fasteners

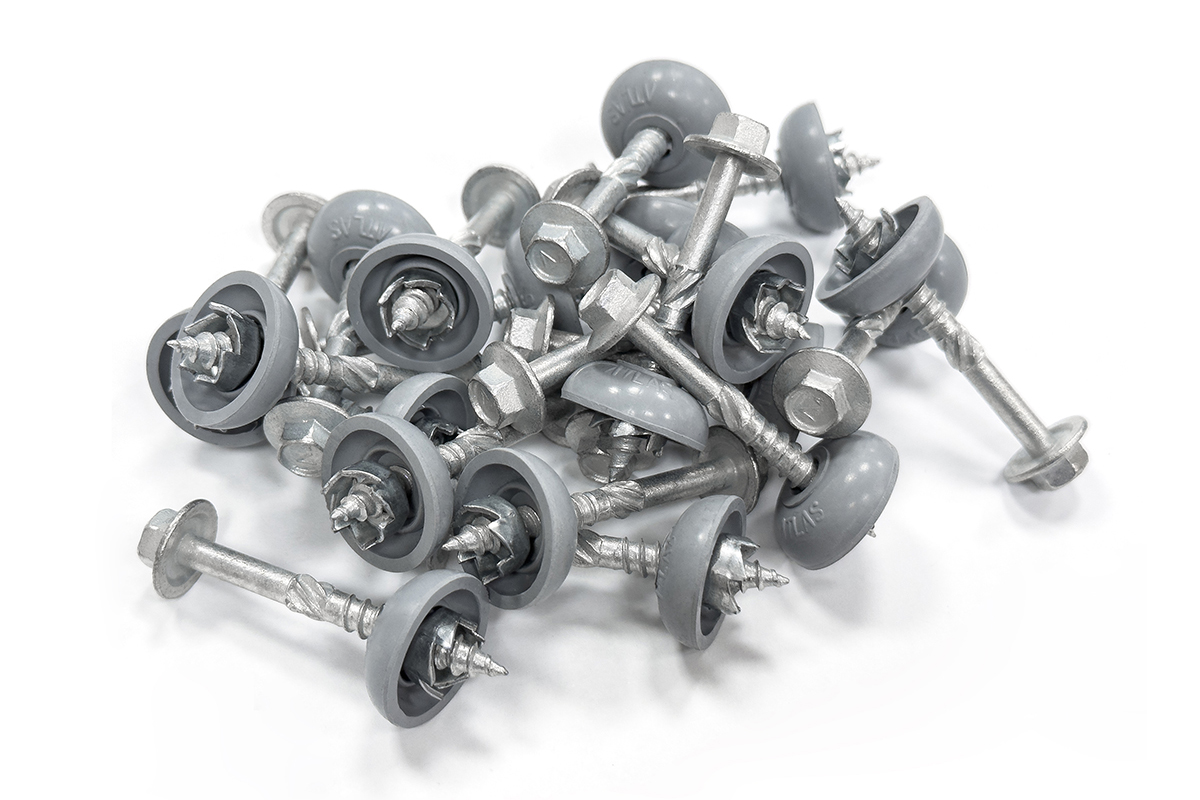

Kwik-Shot™ TIMBER 50mm

Fixing Polycarbonate Skylight to Timber

Kwik-Shot™ polycarbonate fasteners save 50% of labor time – creates a perfectly round 11mm expansion hole, and fix sheets in one go. A fool proof design for both beginners and professionals.

Kwik-Shot™ TIMBER 50mm

Product Code: A4KS-T17HXPS1250C4
Specification: #12-11 x 50mm
Corrosion Resistance:
AS3566.2 Class 4 Mechanical Zinc-Tin Plating
SST 2000hrs + Kesternich 15 Cycles

Product Features:

Hex Washer Flange Head
Integrated Depth Stop Knurls
11mm Expansion Hole Cutter
Thunder Shot Self-Drilling Point

Domed Washer

Two Concentric Sealing Rims, Weatherseal,
Anti-static EPDM Washer.

Timber Penetration

Min 25mm penetration

Adapter to use

Magnetic Hex Socket (5/16”)

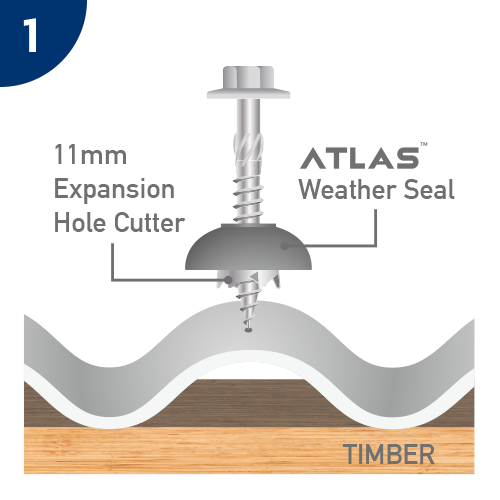

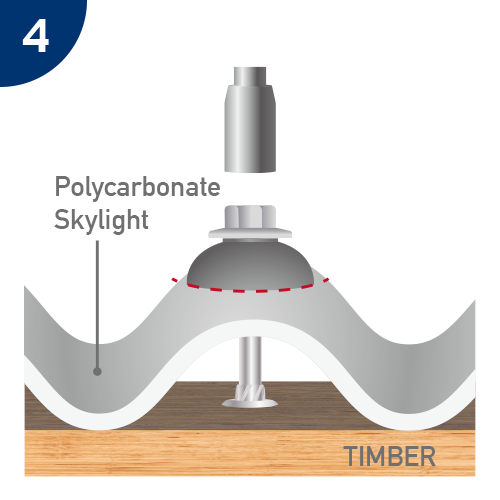

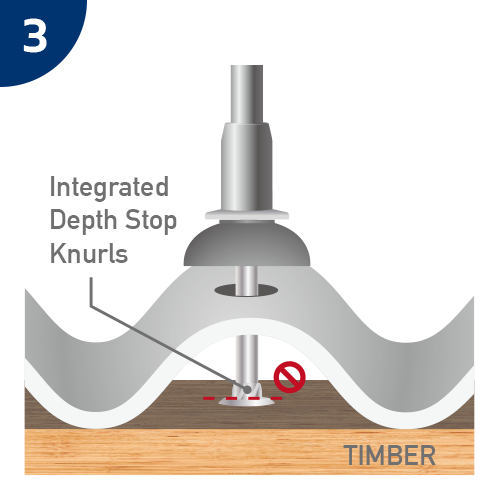

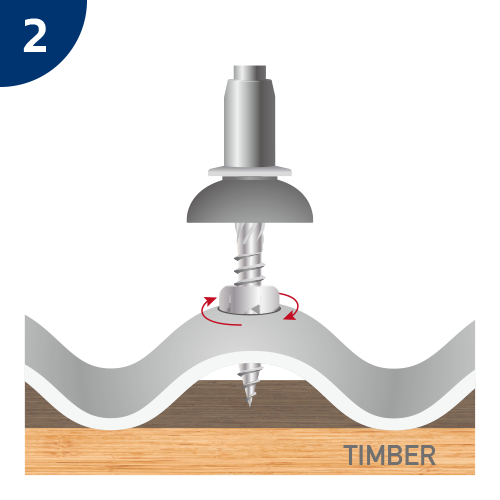

Installation Procedure:


Saves 50% of labor time, creates a perfectly round expansion hole, and fix sheets in one go.	A perfectly round nominal 11mm diameter hole is created by the Thermal Expansion Hole Cutter during the process.	The Expansion Hole Cutter works together with the Depth Stop Knurls, which prevents overdrive and sits perfectly flush against the Timber surface.	A large Domed Weatherseal EPDM washer with two concentric sealing rims on the washer underside completes the package.

Packaging Types

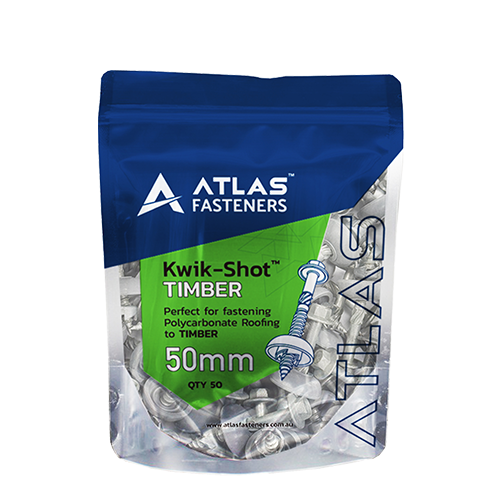

Hang Hole Zip Lock Pack

Plastic Tub

Bulk Carton
